Livoltek 6.2KW hybrid solar inverter
₨110,000.00

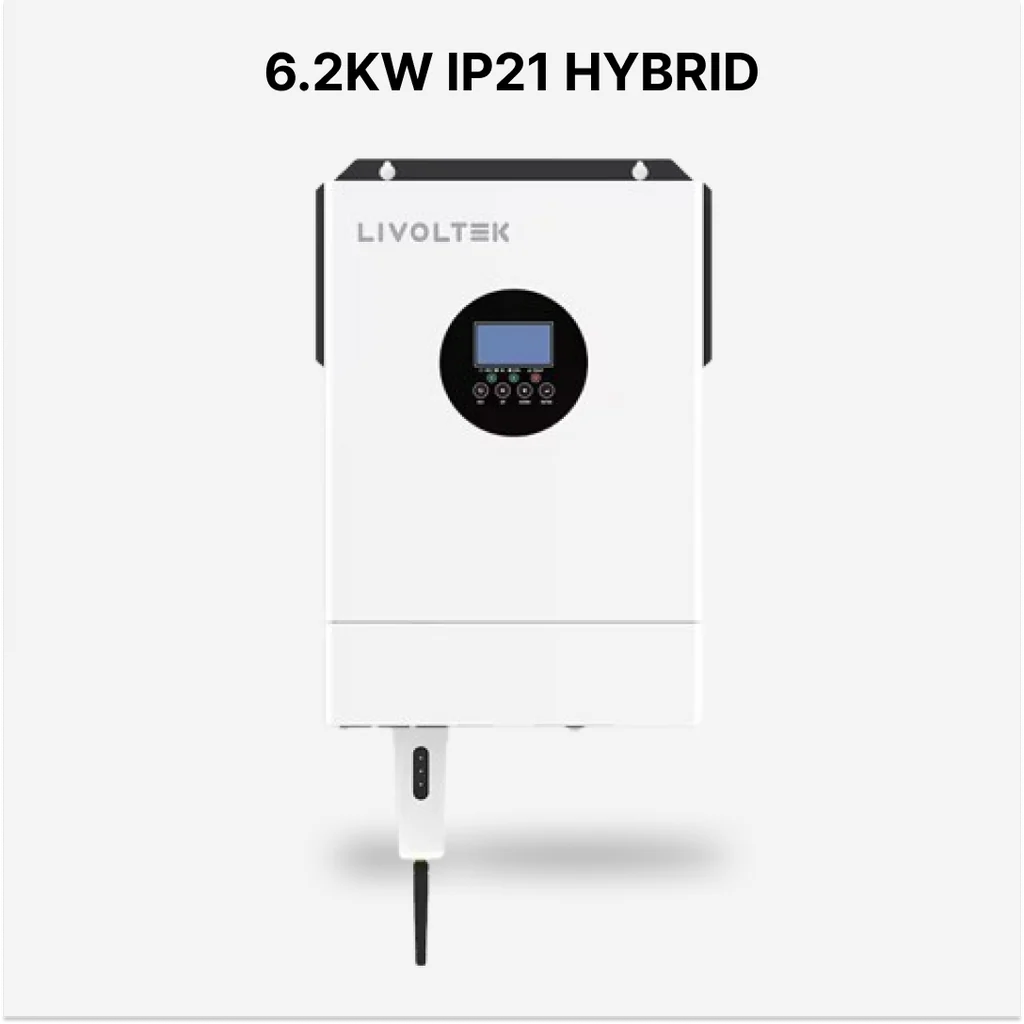

Livoltek GF1-6.2KD – 6.2kW Single Phase Off-Grid Hybrid Inverter (IP21)
Model: GF1-6.2KD
Type: Single Phase Off-Grid Hybrid Inverter
Category: Inverters > Hybrid > Off-Grid
Overview
The Livoltek GF1-6.2KD 6.2kW Off-Grid Hybrid Inverter is a high-efficiency, smart inverter designed for homes, offices, and small commercial solar power systems in Pakistan. With up to 96% efficiency, intelligent battery management, and support for parallel operations, this inverter ensures uninterrupted power supply and optimal performance, even in areas with no grid connectivity.
Perfect for use with or without batteries, this inverter can prioritize power from solar, utility, or battery, giving you full energy flexibility.
Key Features
-
6.2kW Rated Power – Ideal for medium solar setups
-
Works With or Without Battery – Runs directly from solar/utility
-
Online + Offline Monitoring Support – Smart energy management
-
Multiple Output Priority Modes – UTL, SOL, SBU, SUB
-
Supports Up to 5 Battery Packs – Expandable to 25kWh storage
-
Parallel Operation of Up to 12 Units – Scalable for large systems
-
MPPT Charging – Accurate solar power tracking
-
Multiple Safety Protections – Overvoltage, short circuit, over-temp, etc.
-
Dual Output Ports – Flexible backup time management
Technical Specifications
| Parameter | Details |
|---|---|
| Model | GF1-6.2KD |
| Type | Off-Grid Hybrid Inverter |
| Phase | Single Phase |
| Power Rating | 6.2kW |
| Max. Efficiency | Up to 96% |
| Battery Support | Optional (Up to 5 sets – 25kWh) |
| Input Voltage Range (PV) | 60V ~ 450V |
| Max Input Voltage | 500V |
| Output Priority Modes | UTL, SOL, SBU, SUB |
| Parallel Operation | Up to 12 Units |
| Output Ports | Dual |
| Monitoring | Online and Offline |
| Protection | IP21 |
| Warranty | Standard Manufacturer Warranty |
Applications
-
Homes without reliable grid access
-
Shops & small commercial outlets
-
Solar backup for small offices
-
Rural and urban areas with frequent power outages
Benefits for Users
-
Consistent Power Supply: Avoid blackouts and load shedding
-
Flexible Power Source Selection: Switch between solar, grid, and battery
-
Easy System Expansion: Add more batteries or inverters later
-
Cost-Effective: Reduce reliance on the grid, lower energy costs
-
Reliable Monitoring: Keep your system in check anytime
